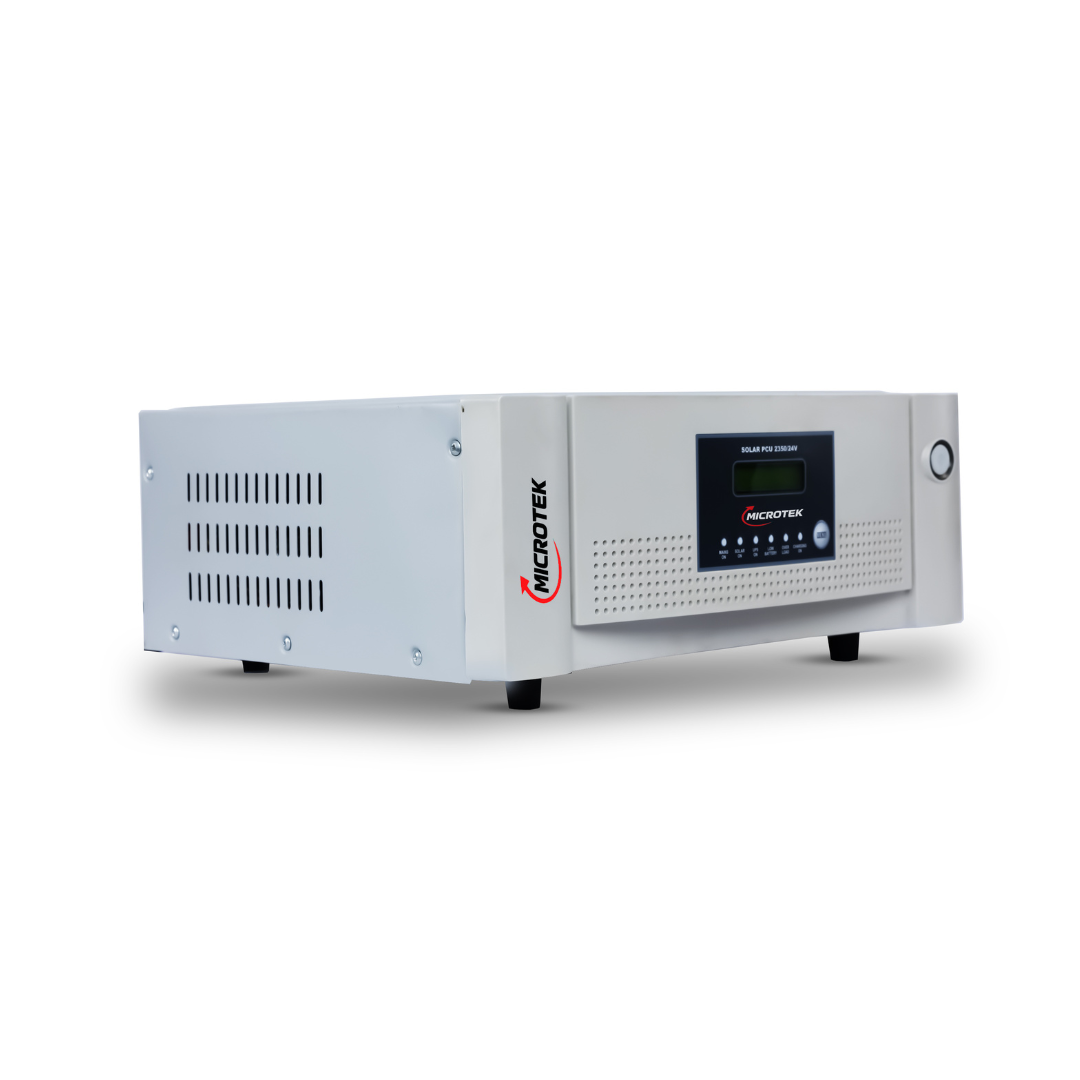

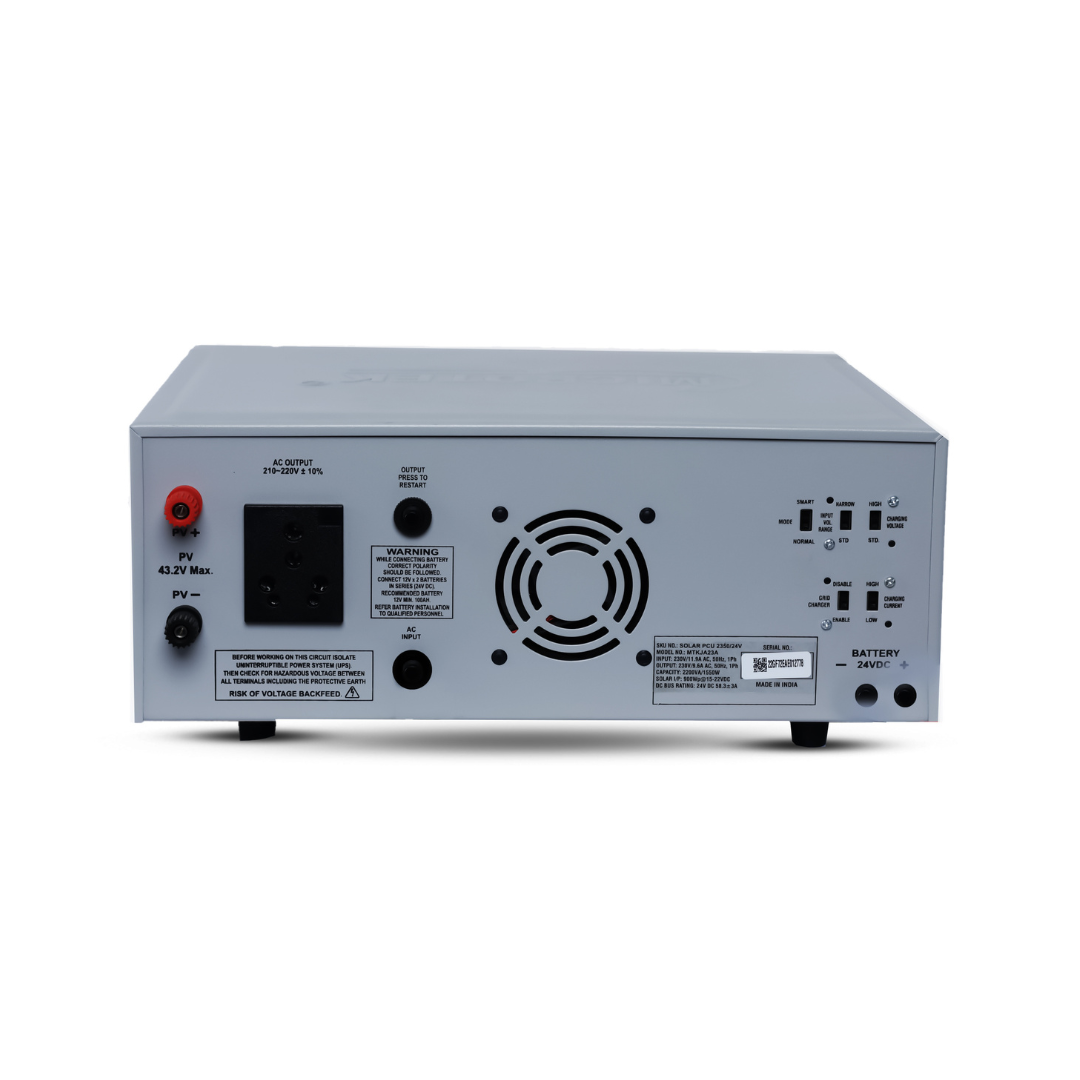

Microtec Solar PCU PWM 2335 2035VA

৳26900

Ratting : (0)

Brand : Microtek

Pay From

Fast Delivery all across the country
Safe Payment
100% Authentic Product

- +

হোয়াটসঅ্যাপে অর্ডার করুন

কল অর্ডার

Weight18.8kg
Output VoltageSame as Input
Dimensions (L*W*H)43.2x46.3x23.2

SALIENT FEATURES:

Micro-Controller DSPIC Based Intelligent Control Design.
Dual Charging, Mains Mode and Solar Mode.(Solar Panel upto 600W-12V model).
Pure Sine Wave Regulated Output.
Smart PWM Controlled multistage ATM (Automatic Trickle Mode) Charging.
LCD and Graphical Display Indications (Status & Fault).

Model	SOLAR PCU 2335/ 24V
Capacity (Rated Power)	2035VA / 24V
Capacity (Maximum PV Power support)	1200 WP
Input
Input Voltage (Standard Range)	100 V ~ 300 V
Input Voltage (Narrow Range)	180V ~ 260 V
Nominal Input Battery Voltage	24V
Output
Output Frequency	50 Hz ± 0.5 Hz
Output Waveform	Pure Sine Wave
Technology
Solar Charger Type	PWM
Max. Solar Panel Current	35 Amps
Mains Re-Connect Voltage	23.2 V ±0.3 V DC
Mains Dis-Connect Voltage	28.8 V ± 0.3 V DC
Solar UPS Overload	110%
Solar UPS Short Circuit	300%
Solar UPS Transfer Time	< 12 msec
Grid Chg. Enable Mode	Luxury Mode
Grid Chg. Disable Mode	Economy Mode
